Indoor LED Unit
| Part No. | Picture | Dot Size | Pixel Pitch (mm) | Dots (X/Y) | Size (mm) (X/Y) | Max. Power Comsuption ( /m2) | Net Weight ( /m2) | Pixel Dim. | Data Sheet | ||
| Single-color | Bi-color | Full-color | |||||||||
| DB3264 |
 |
Ф1.90 | 2.5 | 64*32 | 160*80 | ■1500W | ■2500W | / | 32Kg | 160000 |
 |
| DC3264 | Ф3.00 | 4 | 64*32 | 256*128 | ■600W | ■1000W | / | 35Kg | 62500 |
 |
|
| DD3264 | Ф3.75 | 4.75 | 64*32 | 304*152 | ■400W | ■700W | ■1000W | 30Kg | 44320 |
|
|
| DE3264 | Ф4.80 | 6 | 64*32 | 384*192 | ■240W | ■420W | ■630W | 30Kg | 27777 |
|
|
| DF3264 | Ф5.00 | 7.62 | 64*32 | 488*244 | ■150W | ■240W | ■360W | 25Kg | 17220 |
|
|
| Other Specs can be Customized! | |||||||||||
    |
|||||||||||
| Part No. | Picture | SMD LED | Pixel Pitch (mm) | Dots (X/Y) | Size(mm) (X/Y) | Max. Power Comsuption ( /m2) | Net Weight ( /PC) | Pixel Dim. | Data Sheet | ||
| Single-color | Bi-color | Full-color | |||||||||

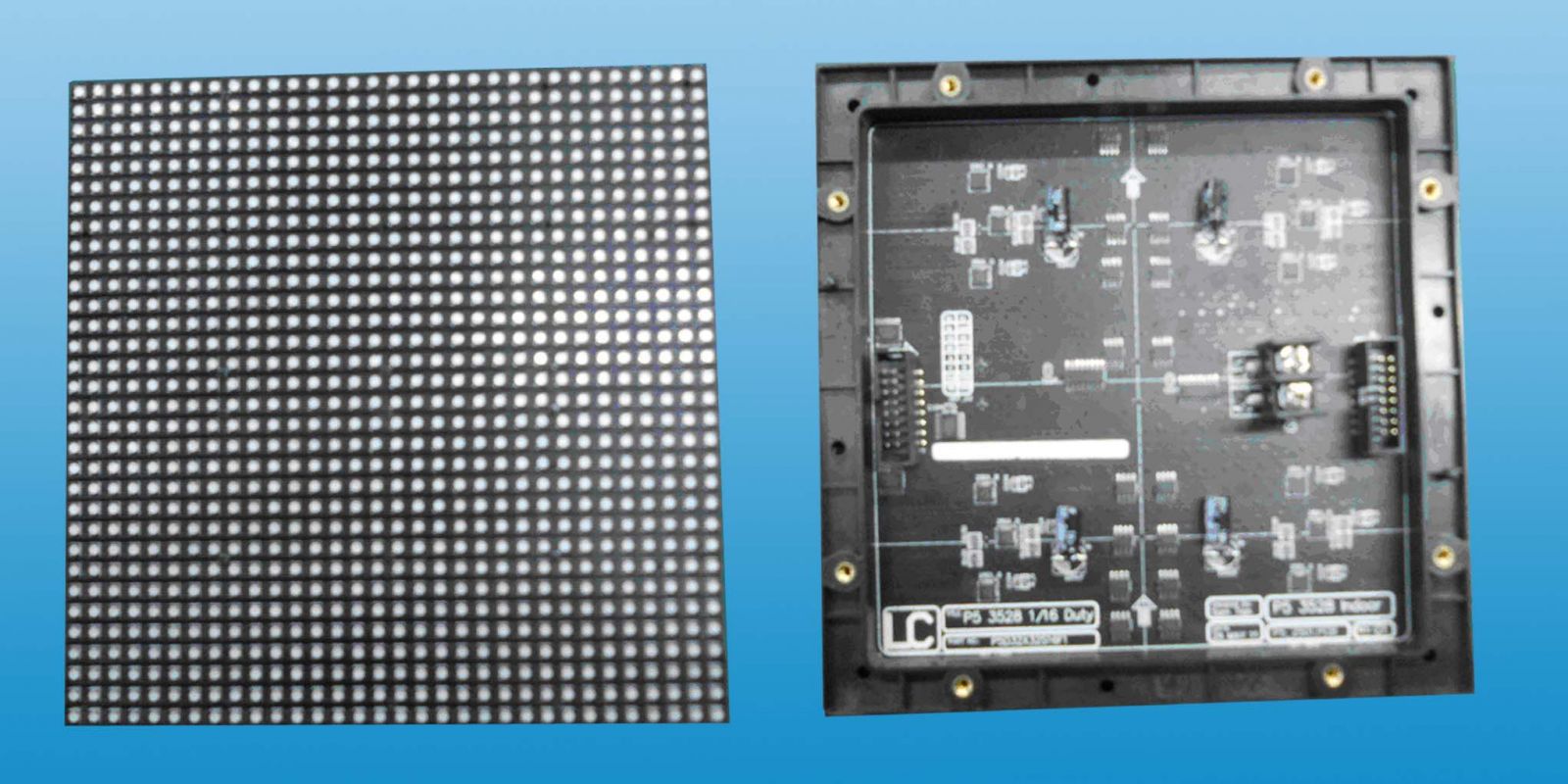

| S43232 |
 |
0606 | 4 | 32*32 | 128*128 | / | / | ■1070W | 0.13Kg | 62500 |
|
| S53232 |
 |
3528 | 5 | 32*32 | 160*160 | / | / | ■703W | 0.2Kg | 40000 |
|

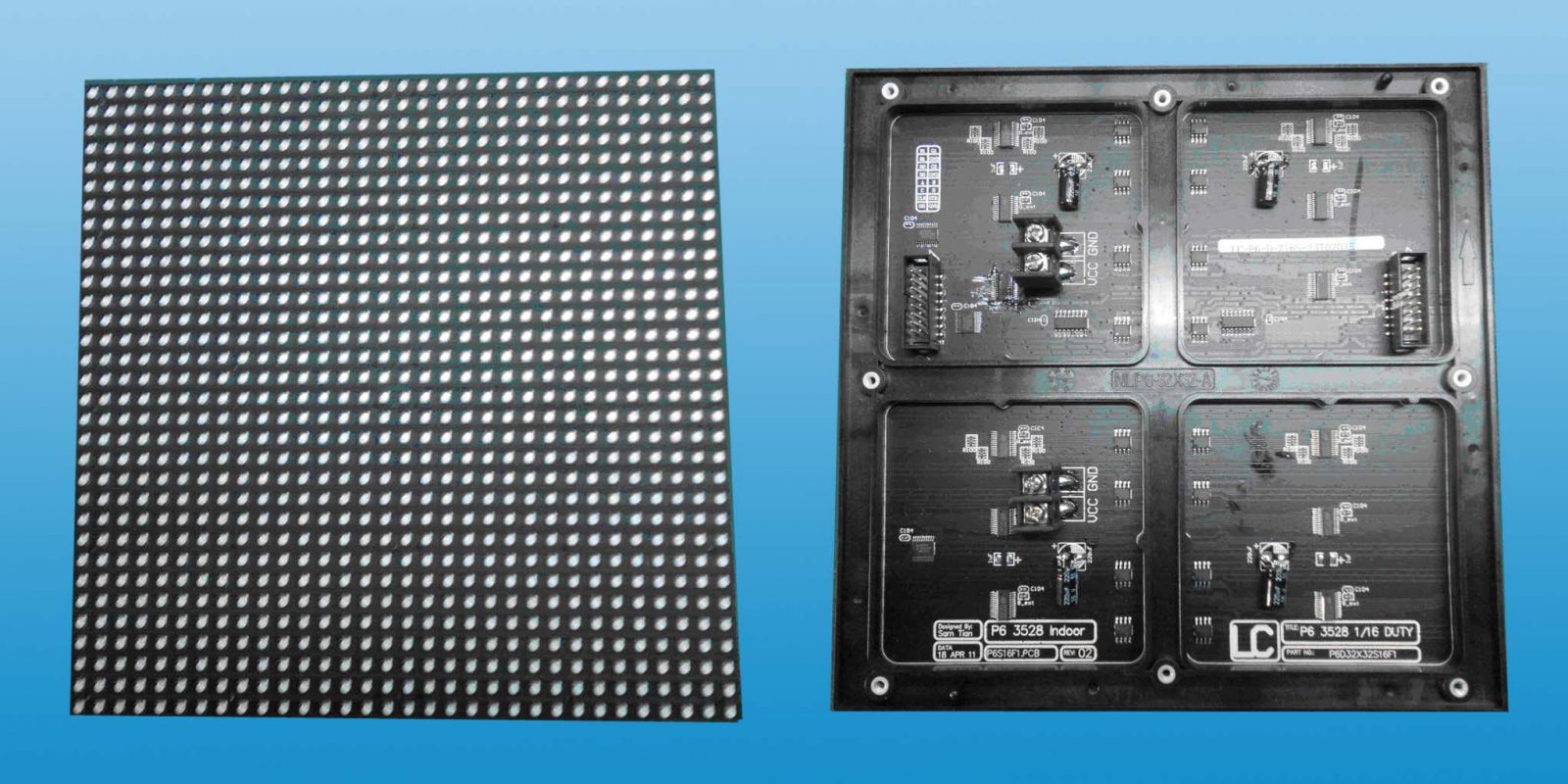

| S63232 |
 |
3528 | 6 | 32*32 | 192*192 | / | / | ■380W | 0.3Kg | 27777 |
|
| S83264 |
 |
3528 | 7.62 | 64*32 | 488*244 | / | / | ■394W | 0.94Kg | 17222 |
|
| S101632 |
 |
3528 | 10 | 32*16 | 320*160 | / | / | ■342W | 0.4Kg | 10000 |
|
If you need power, please press
, need control system, please press
. DIY Guide makes assembly easy!
